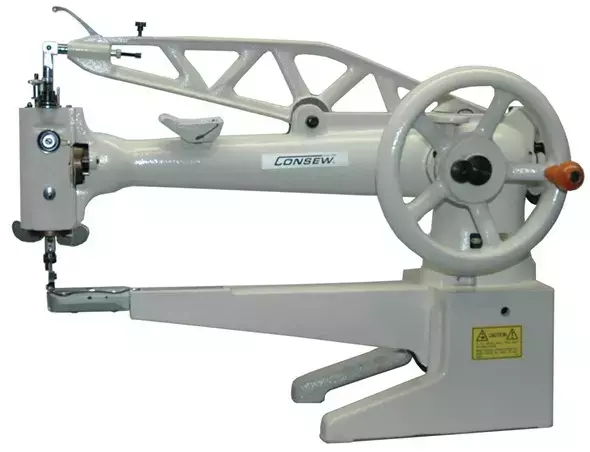

CONSEW 29L Single Needle 18 Inch Cylinder Arm Shoe Repair and Mending Machine With Table and Servo Motor

CONSEW 29L Single Needle 18 Inch Cylinder Arm Shoe Repair and Mending Machine Comes With Table, Legs, Servo Motor and LED Lamp

With: Oscillating Shuttle, Extra Small Cylinder Bed, Universal Upper Feed, Double Ended Needle Plate

MACHINE APPLICATIONS:

Repairing of leather materials and shoe uppers.

MACHINE FEATURES:

• Extra small cylinder bed
• Oscillating Shuttle
• Universal upper feed for stitching in any direction without turning work
• Handwheel can be mounted on front or right end of machine
• Wheel pulley "V" groove for motor drive
• Double ended needle plate with different size holes at back end to accommodate various size needles
• Adjustable thread take-up lever
• Adjustable presser foot pressure and thread tension
• Machine can be driven by foot treadle, hand crank or electric motor

MACHINE SPECIFICATIONS:

• Standard or Full Function:  Standard Functions
• Needle:  29x3, Style 3741
• Workspace:  Long Arm
• Hook Size:  Small
• Net Weight:  77 lbs. (35kgs)
• Feeding Mechanism:  Universal
• Workspace:  18" (460mm)
• Clearance Under Presser Foot:  13/32 s.p.i. (10.5mm)
• Gross Weight:  88 lbs. (40kgs)
• Depth of Cylinder Bed:  7/8" (22.2mm)
• Stitch Length: 3.5 s.p.i. (1-7mm)
• Width of Cylinder Bed: 1" (25.4mm)
• Number of Needles: 1 (Single)
• Speed, Max (S.P.M.):  500
• Total Carton Size:  5.3 ft3 (.15cbm)

THE ADVANTAGES OF A SERVO MOTOR:

• They use up to 90% less power than clutch motors
• They are 1/3 lighter than clutch motors
• With a flick of the switch you can reverse motor rotation
• No parts to wear out or adjust.
• No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
